Contact Rating: 6A@125VAC or 28 VDC;
3A@250VAC
Electrical Life: 50,000 cycles
Contact Resistance: 20mΩ max.
Insulation Resistance: 1,000MΩ min.
Dielectric Strength: 1,500V RMS @sea level
Operating Temperature:-30℃~+85℃
<ul id="6o4em"></ul> <ul id="6o4em"></ul> <strike id="6o4em"></strike>
介紹：

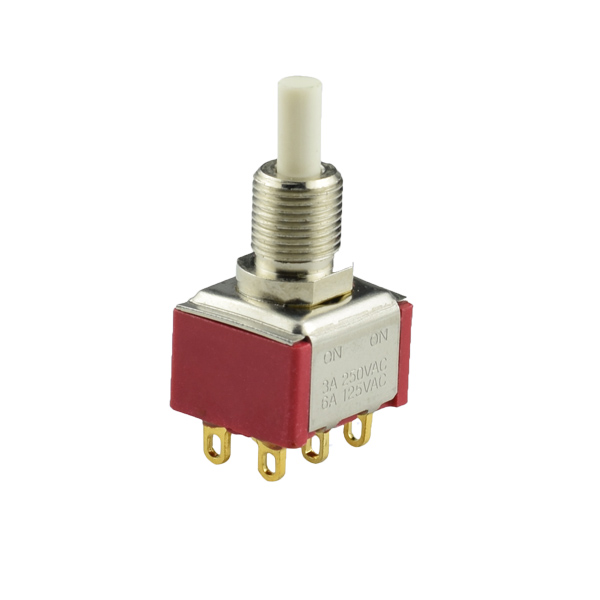

小型按鍵開關T80-L系列，功能有復位常開，自鎖式LOCK,有SPDT、DPDT等功能，有直腳和90度彎腳，各種端子種類跟長度和多種規(guī)格蓋帽，我們產品擁有UL、ENEC并符合ROHS規(guī)范
